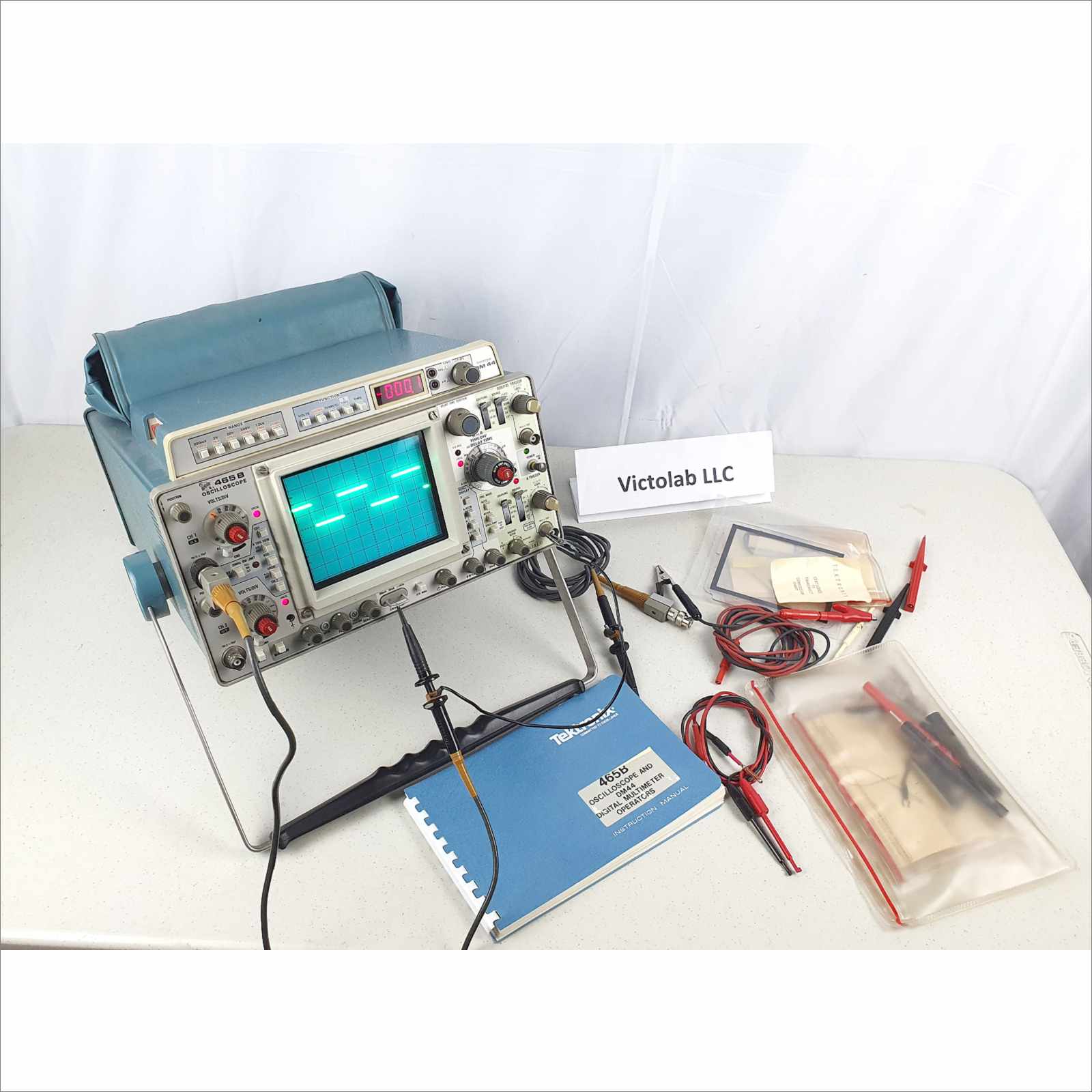

Tektronix 465B Dual-Trace 100 MHz Oscilloscope with DM-44 Multi-meter Module and Accessories

$299.99

Item inspected with no issues noted by our testing technician.

Out of stock

This Tektronix 465B Dual-channel / Trace 100 MHz Oscilloscope is in good physical and working condition.

it was tested with the following notes from our testing technician:

  • Connected to main and powered on with no issues.

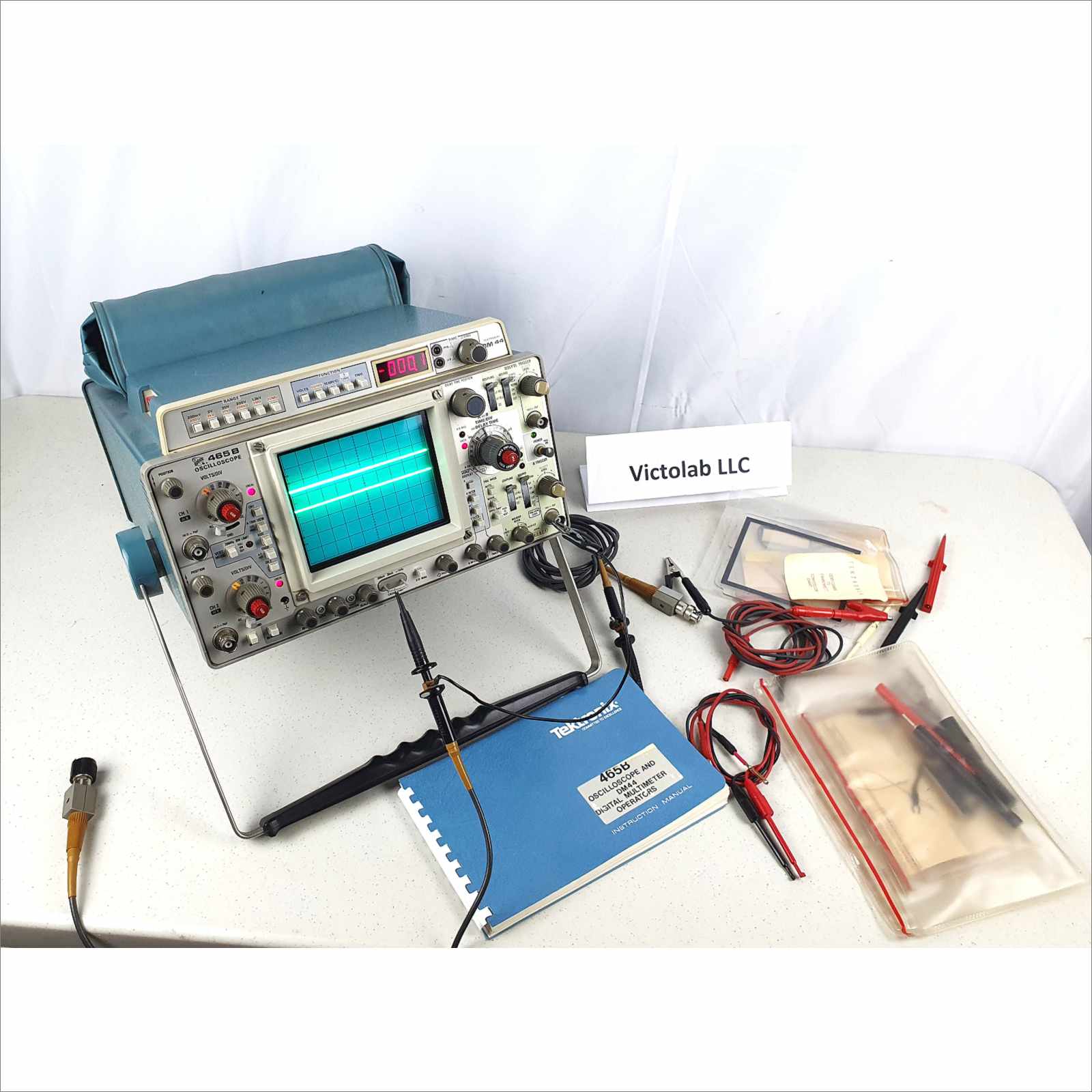

  • Generated the line trace on both channel.

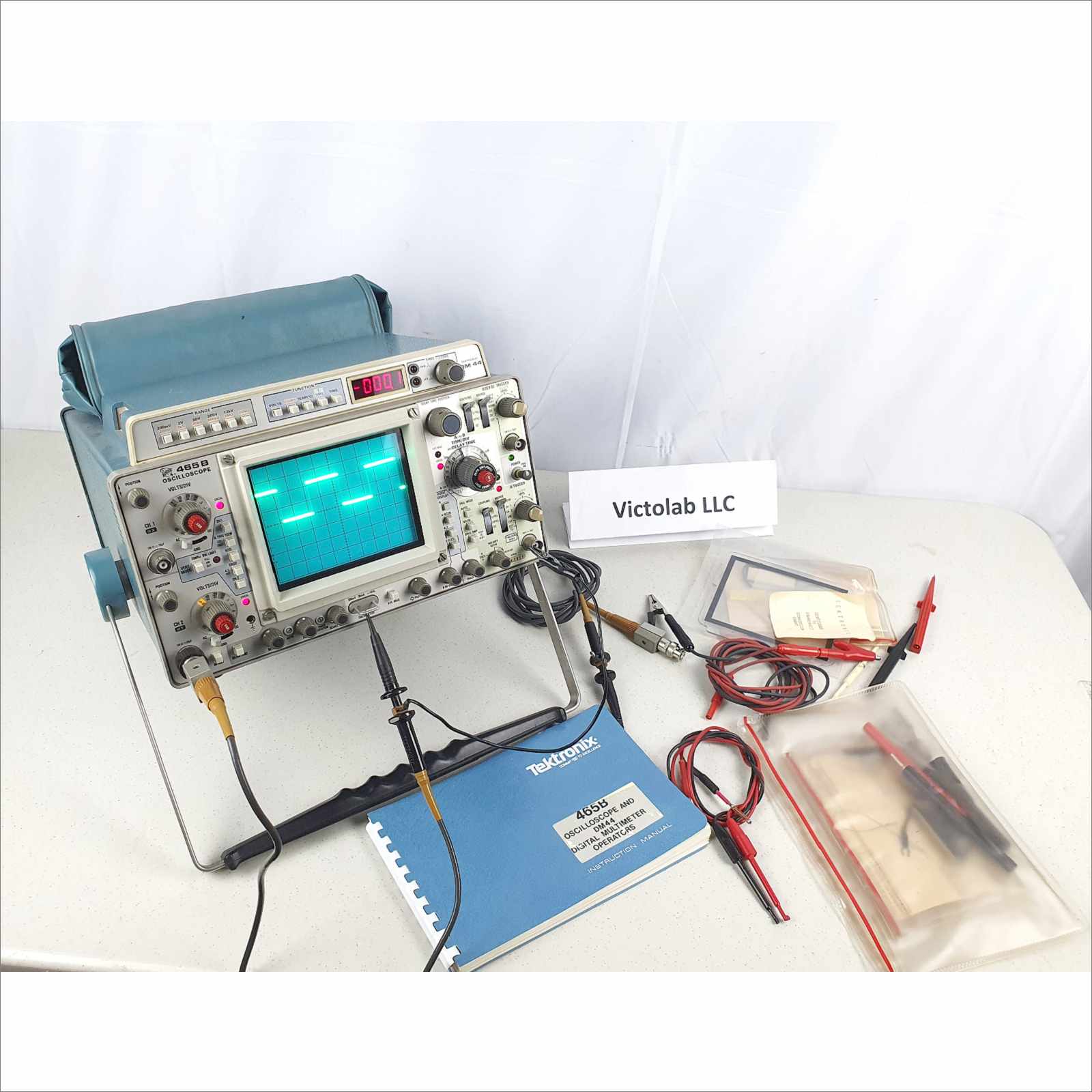

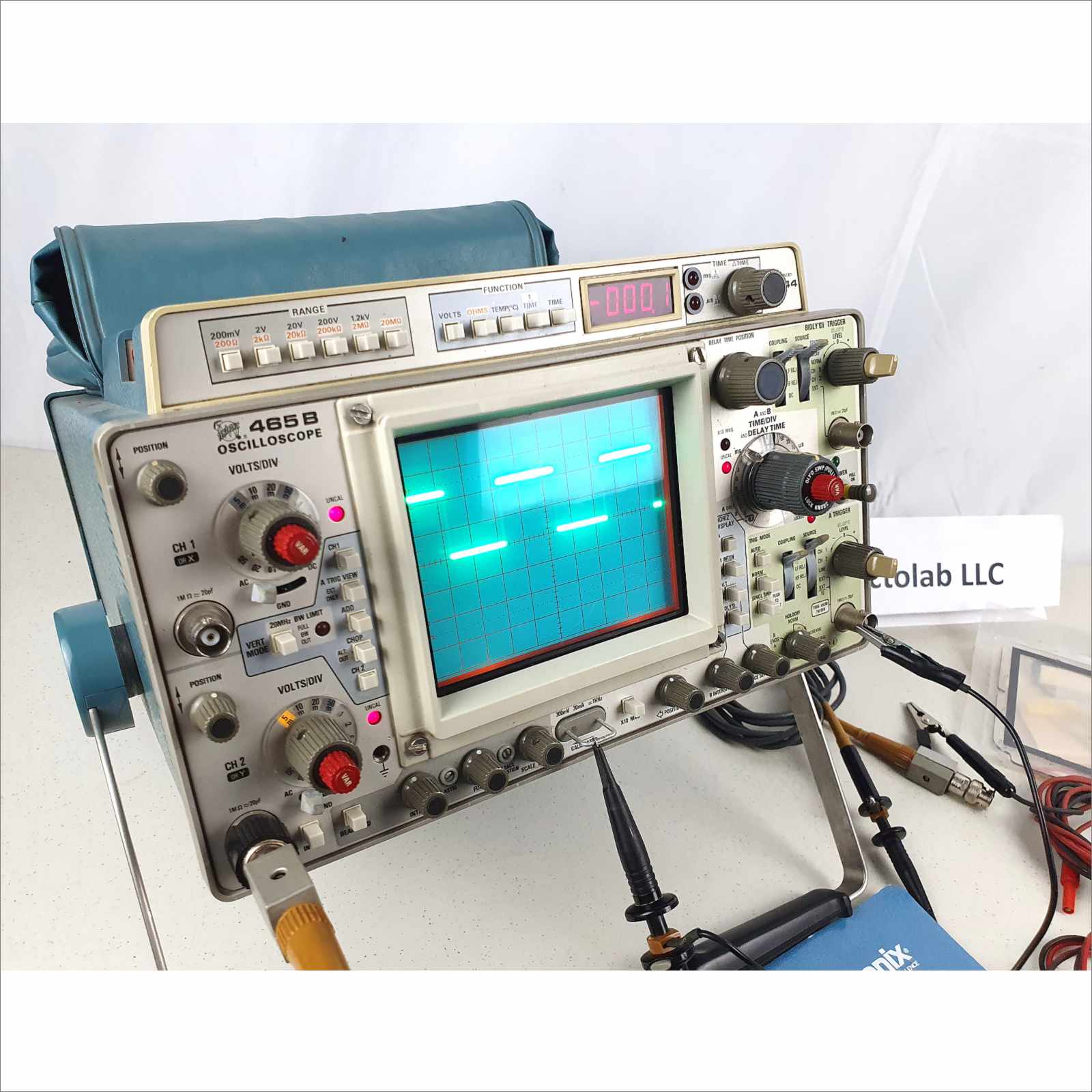

  • Connected to the integrated pin for square wave generation, the trace was visible on both channels as pictured.
  • all nobs,controls and buttons are functional.
  • the display was tested for brightness, contrast and focus with no issues.
  • inputs / outputs work perfect.

Serials: B047914

Features and Specs

    • VERTICAL DEFLECTION (2 IDENTICAL CHANNELS)
      • Deflection Factor at BW 5 mV/div
      • Display Modes: Ch 1, Ch 2 ADD (normal and inverted), alternate, chopped – approx. 500 kHz rate, in any combination electronically switched.
      • Automatic Scale Factor Probe tip deflection factors for 1X or 10X coded probes are indicated by two readout lights behind knob skirts. LEDs are off when channel not displayed. Ground reference display selectable at probe (when dc coupled).
      • Input R and C 1 MΩ ± 2% paralleled by approx. 20 pF
    • HORIZONTAL DEFLECTION
      • Time Base A: 0.02 µs/div to 0.5 s/div (1-2-5 sequence). 10X mag extends max sweep rate to 2 ns/div. LED indicates 10X mag.
      • Time Base B: 0.02 µs/div to 50 ms/div (1-2-5 sequence). 10X mag extends max sweep rate to 2 ns/div. LED indicates 10X mag.
    • DISPLAY
      • Crt 8 X 10 cm display. Horizontal and vertical centerlines further marked in 0.2 cm increments. P31 phosphor standard; P11 optional. 18 kV accelerating potential.
      • Graticule: Internal, nonparallax; variable edge lighting; markings for measurement of rise time.
      • Beam Finder: Compresses trace to within graticule area for ease in locating an offscreen signal. A preset intensity level provides a constant brightness.
      • Z-Axis Input: Dc coupled, positive-going signal decreases intensity; 5 V p-p signal causes noticeable modulation at normal intensity; dc to 50 MHz.
    • Dimension: 6.2 x 12.9 x 20.3
    • Weight: 25.3

For Full specification and features Please check the manufacturer documentation.

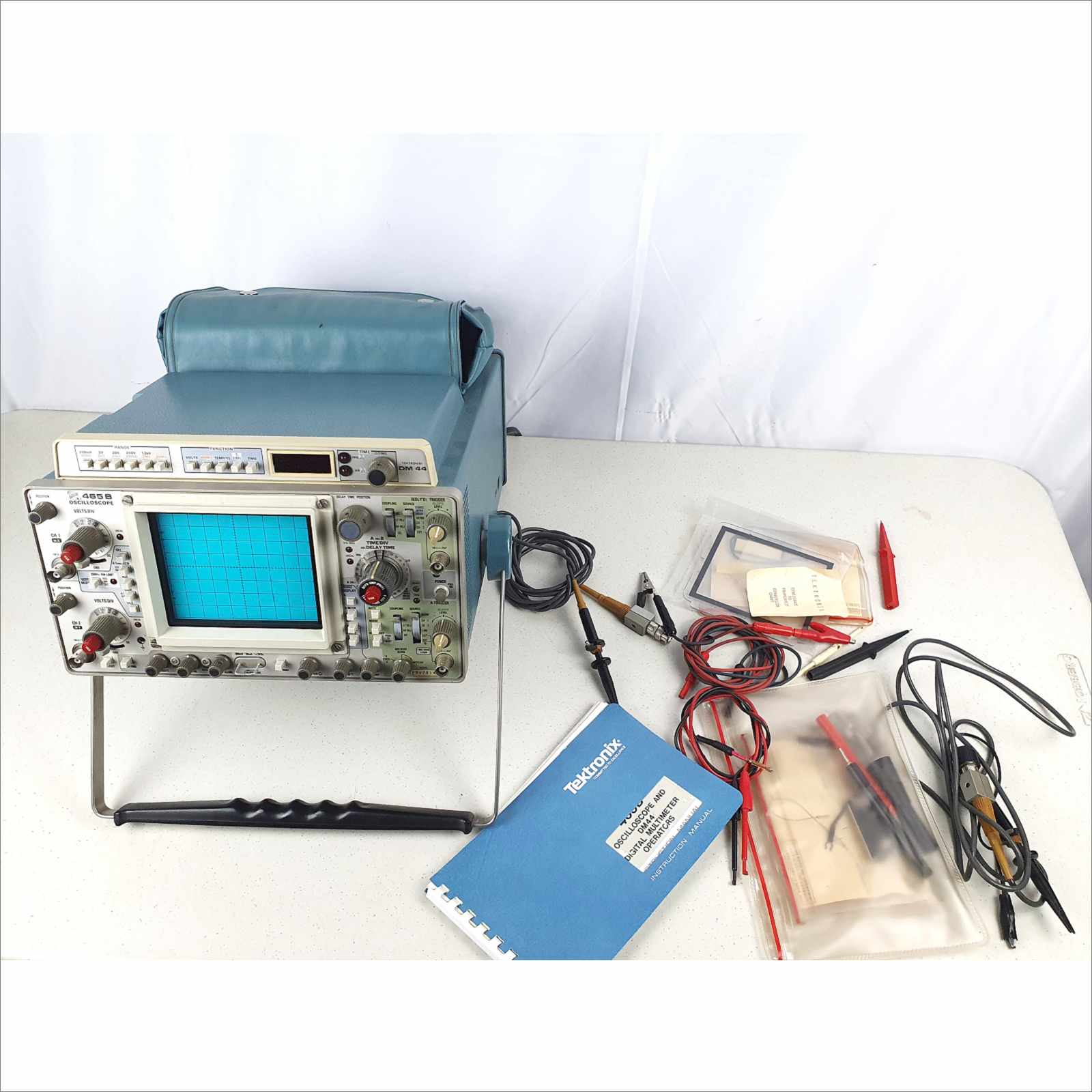

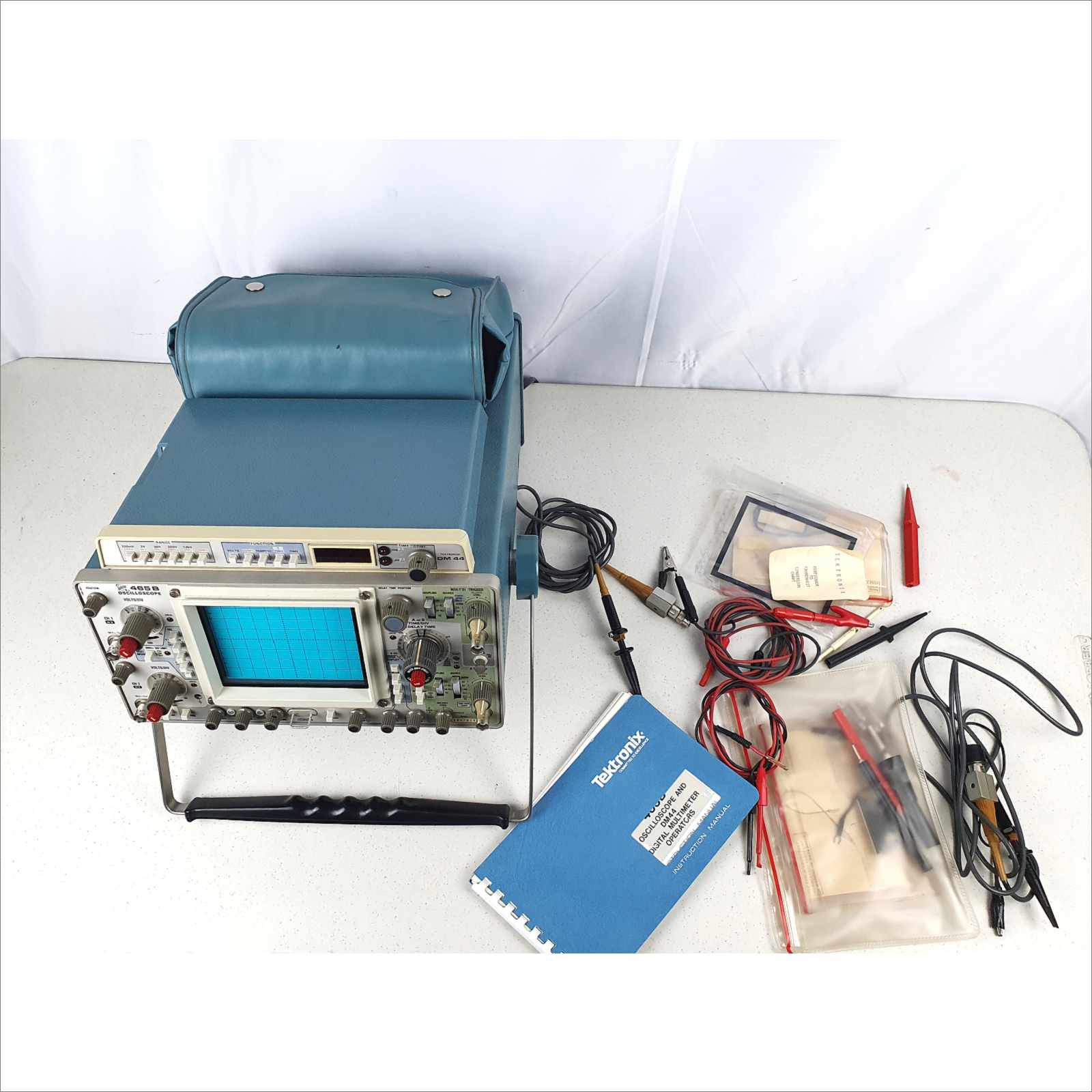

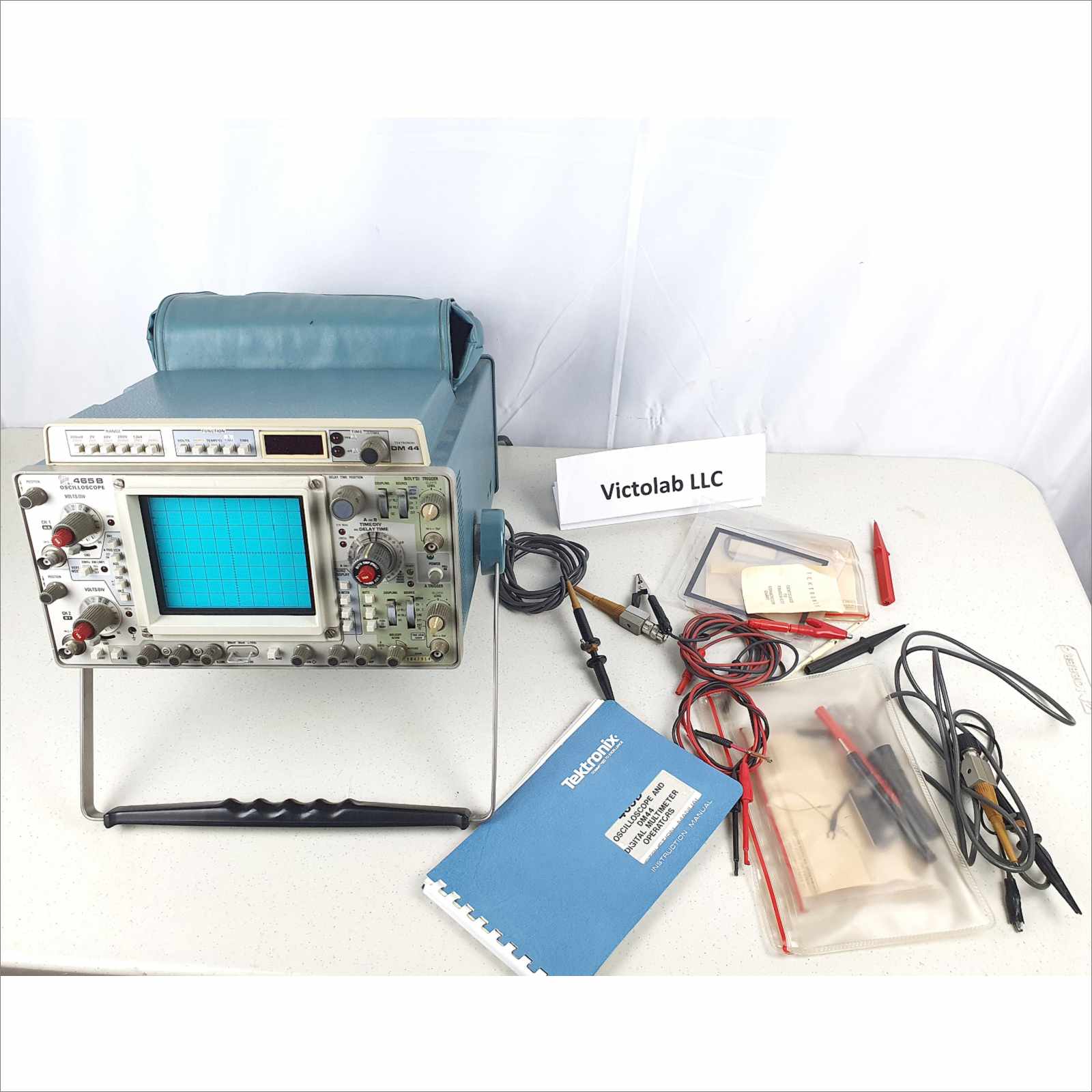

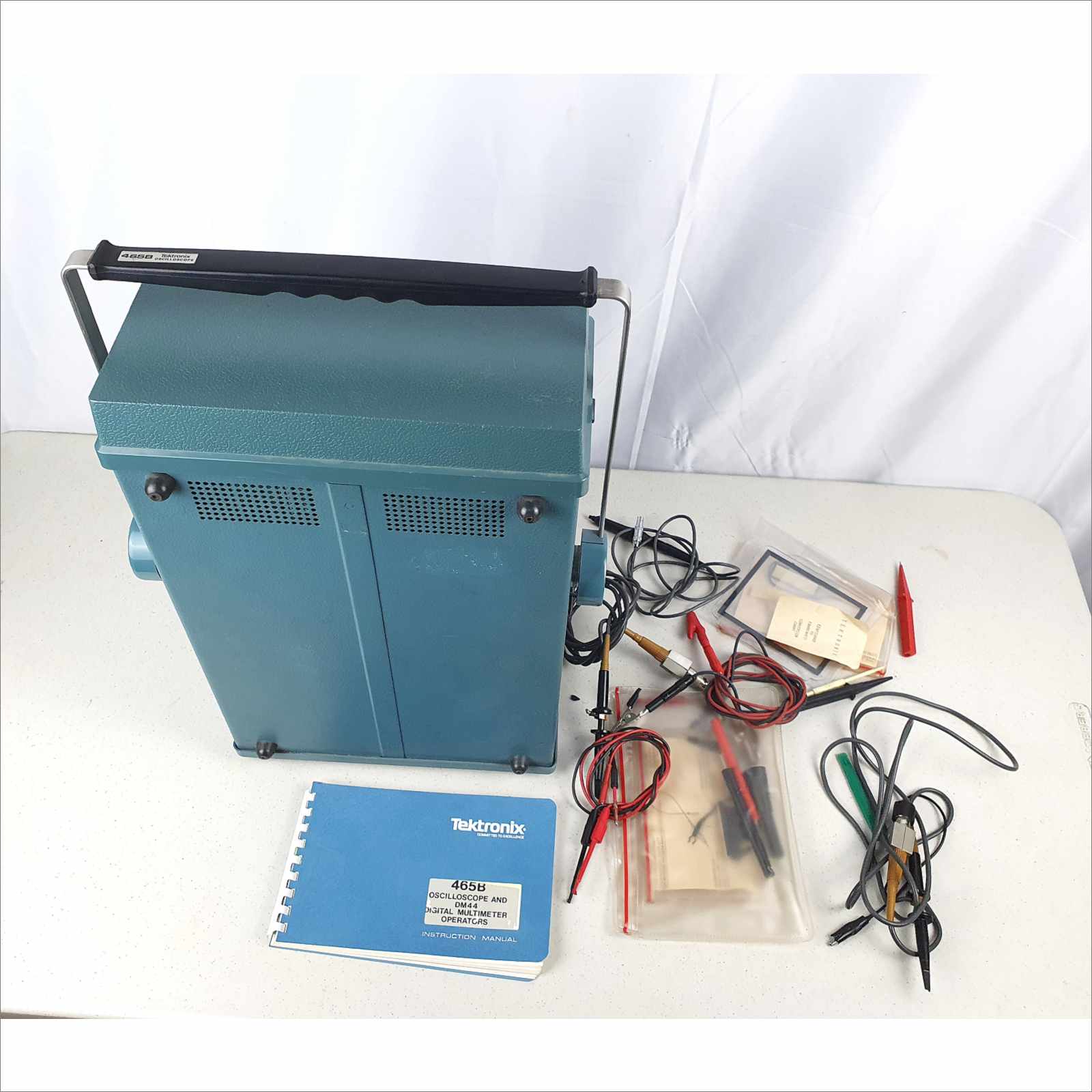

Includes:

  • 1x Tektronix 465B Dual-Trace 100 MHz Oscilloscope with DM-44 Multi-meter Module and Accessories
  • Accessories

Does Not Include:

  • Anything else not listed or pictured above
Weight 36 lbs
Dimensions 17 × 26 × 16 in
Manufacturer Part Number

465B / DM-44

Color

Blue

Product Type

Oscilloscope With Multi-meter

Others

Input Voltage and Amp : 110 – 220 VAC.
Number of Channel: 2
Features: square wave function generation for calibration purpose, digital multi-meter ….
Dimension: 6.2 x 12.9 x 20.3
Weight: 25.3

Condition Used
Notes Item inspected with no issues noted by our testing technician.
